CONFIDENTIAL
TRANSPORT CHARACTERISTICS - AP-5
Length Overall . . . . . . . . . . . . . . . . . . . . . . 445'3"
Breadth (at water line). . . . . . . . . . . . . . . . . . 62'1 5/8"
Draft, light (FWD) . . . . . . . . . . . . . . . . . . . . 13.79'
Draft, light (AFT) . . . . . . . . . . . . . . . . . . . . 14.86'
Draft, maximum . . . . . . . . . . . . . . . . . . . . . . 24'
Maximum speed, knots . . . . . . . . . . . . . . . . . . . 18
Cruising speed, knots. . . . . . . . . . . . . . . . . . . 17
Steaming radius, miles . . . . . . . . . . . . . . . . . . 9,755
Displacement, normal load, tons. . . . . . . . . . . . . . 11,800
Bunker fuel, bbls. . . . . . . . . . . . . . . . . . . . 7,804

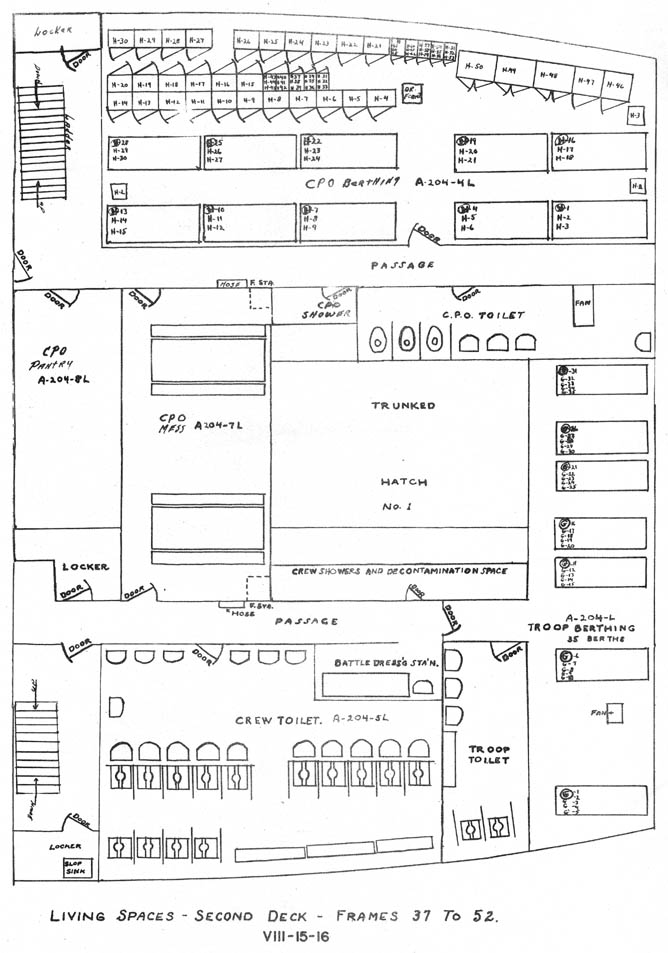

Ship's Facilities
Laundry, Officers only . . . . . . . . . . . . . . . . . .
Portable water tank, gals. . . . . . . . . . . . . . . . 120,000
Fresh water daily, gals. . . . . . . . . . . . . . . . . 40,000
Sick bay capacity. . . . . . . . . . . . . . . . . . . . . 15
Showers. . . . . . . . . . . . . . . . . . . . . . . . . . 31
Basins . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Heads, seats . . . . . . . . . . . . . . . . . . . . . . . 75
Debarkation stations . . . . . . . . . . . . . . . . . . . 10
BOATS
LCV(P) . . . . . . . . 21
LCM(3) . . . . . . . . 2
LCS(S) . . . . . . . . 1
Life rafts . . . . . . 34(60 man)
LCP . . . . . . . . . 21
LCP(R) . . . . . . . . 1 |
ARMAMENT
5"/33 . . . . . . . . . 1
40 MM Quad . . . . . . . 1
40 MM Twin . . . . . . . 1
20 MM AA . . . . . . . . 10 |
CARGO HANDLING GEAR
Nets cargo . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Slings, chime hook, 4 bbl. capacity, leads to be of chain. . . . 4
Slings, pallet bridle, for 4' x 6' pallets . . . . . . . . . . . 5
Slings, universal, 15 ton caacity, with safety pactor of 4 . . . 6
Slings, (5 l/47' manila) . . . . . . . . . . . . . . . . . . . 10
Slings, (3/8" wire 20' long with running hook) per gear . . . 10
Rollers, fancy, per hatch . . . . . . . . . . . . . . . . . . . 2
Slings, 2" wire, 50' long . . . . . . . . . . . . . . . . . . . 2
Slings, 1" wire, 50' long . . . . . . . . . . . . . . . . . . . 4
Slings, 7/8>;' wire, 30' long . . . . . . . . . . . . . . . . . 4
Slings, 3/4w wire, 40' long . . . . . . . . . . . . . . . . . . 4
Slings, 3/4" wire, 7' long . . . . . . . . . . . . . . . . . . 20
Slings, 5/8" wire, 7' long . . . . . . . . . . . . . . . . . . 20
Slings, 1/2" wire, 7' long . . . . . . . . . . . . . . . . . . 20
Bars, pinch, 6' per hatch . . . . . . . . . . . . . . . . . . . 2
Rollers (3;' pipe, 5' long) per hatch . . . . . . . . . . . . . 6
Sections conveyor rollers, per hatch . . . . . . . . . . . . . 10
|
