This is the Booklet of General Plans for Regulus as of March 1942 following availability at Mare Island Navy Yard.
|

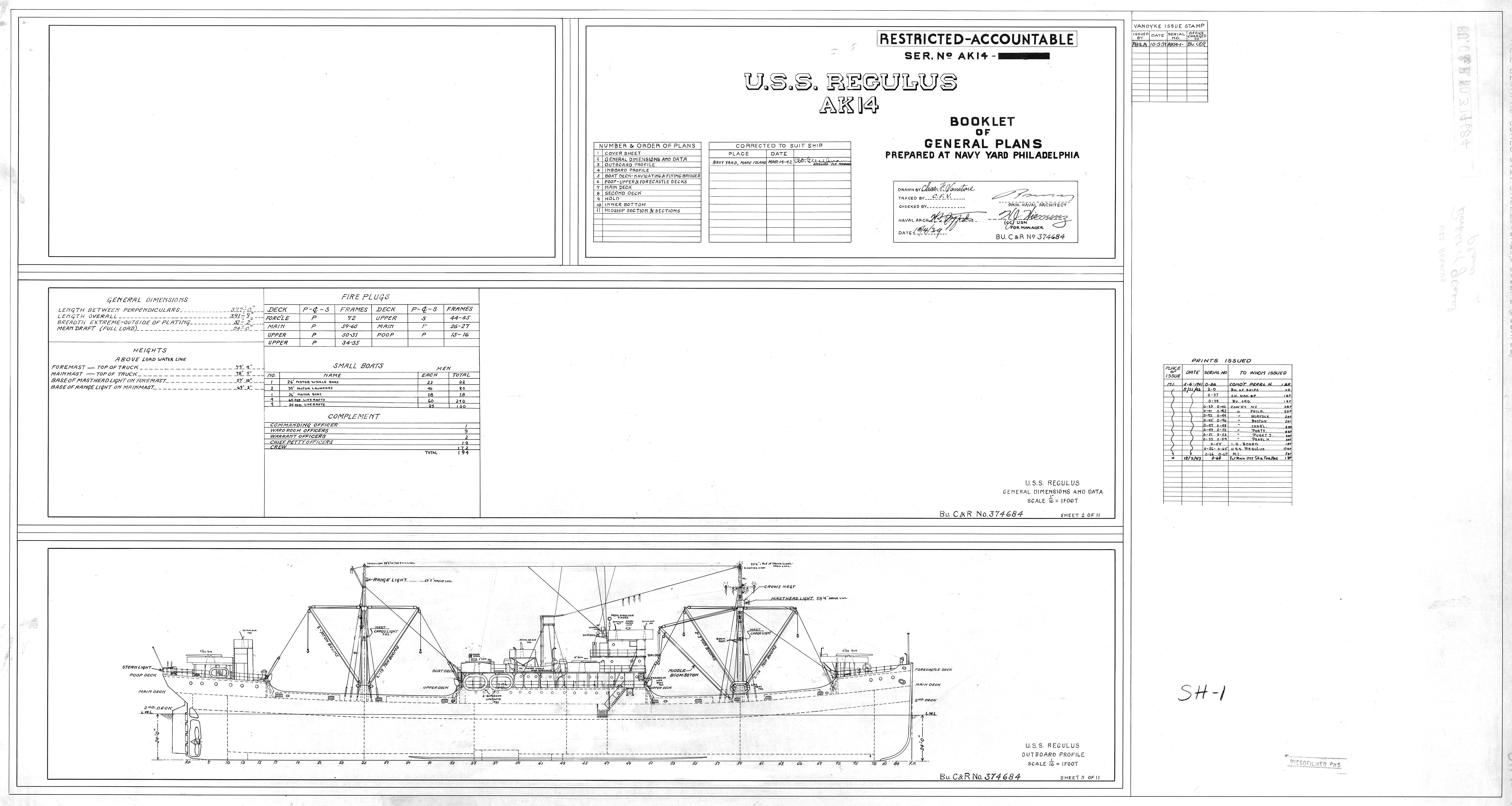

USS Regulus AK-14 - Sheets 1 - 3
Cover, Data Sheet, Outboard Profile
|
|
|

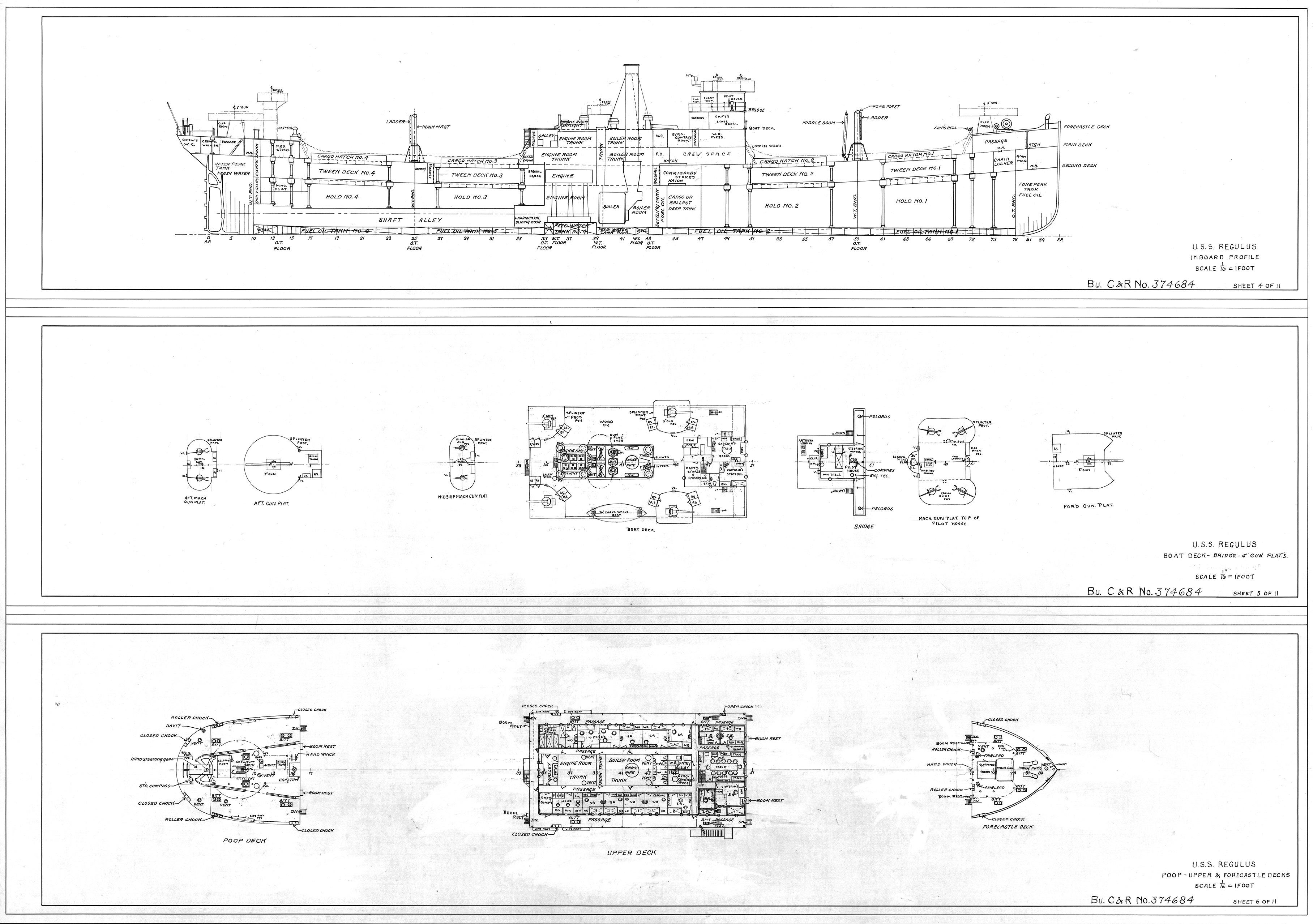

USS Regulus AK-14 - Sheets 3 - 6
Inboard profile; boat deck, bridge and 4" Gun Platforms; and Poop, Upper, and Forecastle Decks
|
|
|

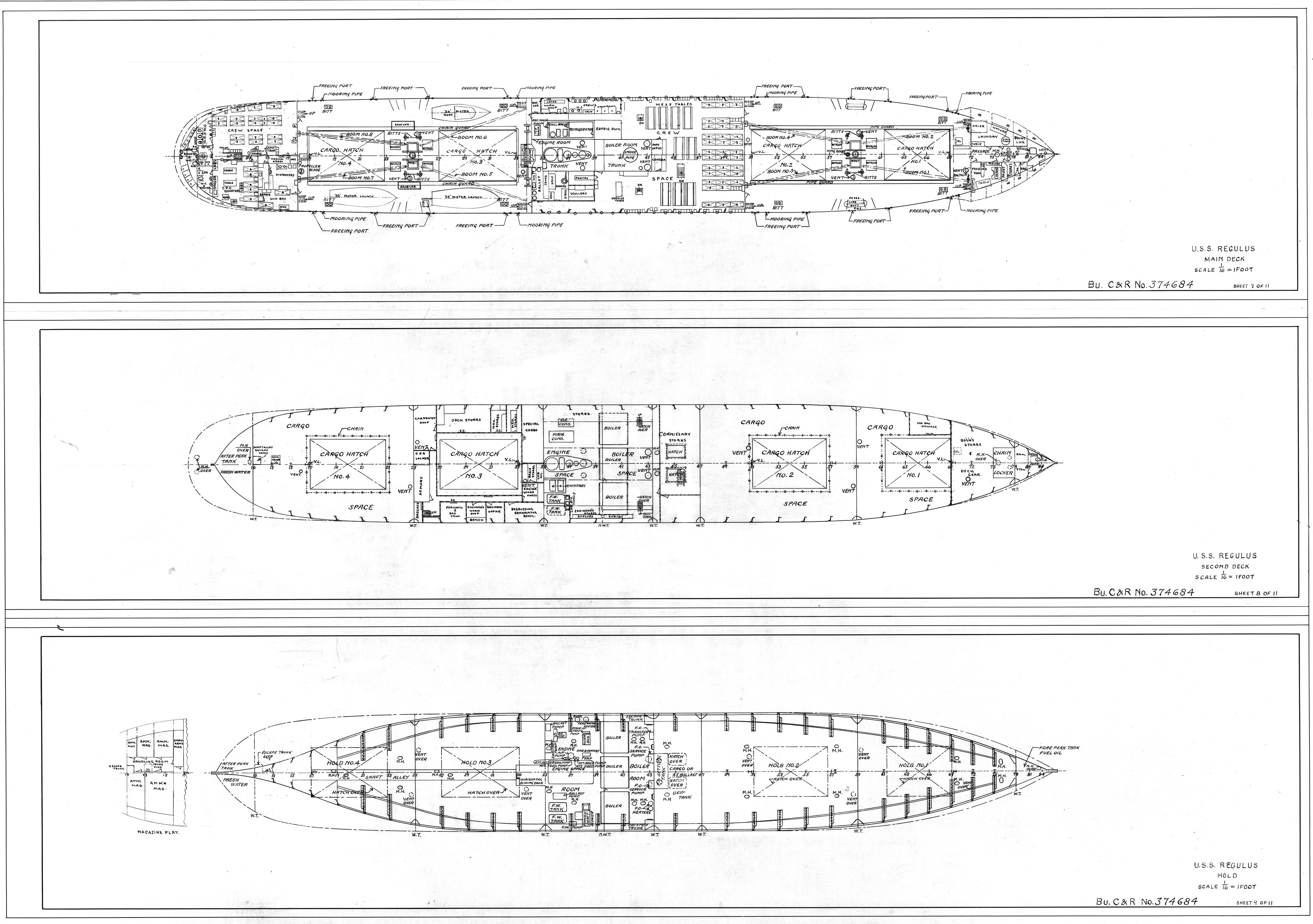

USS Regulus AK-14 - Sheets 7 - 9
Main deck, Second Deck, and Hold.
|
|
|

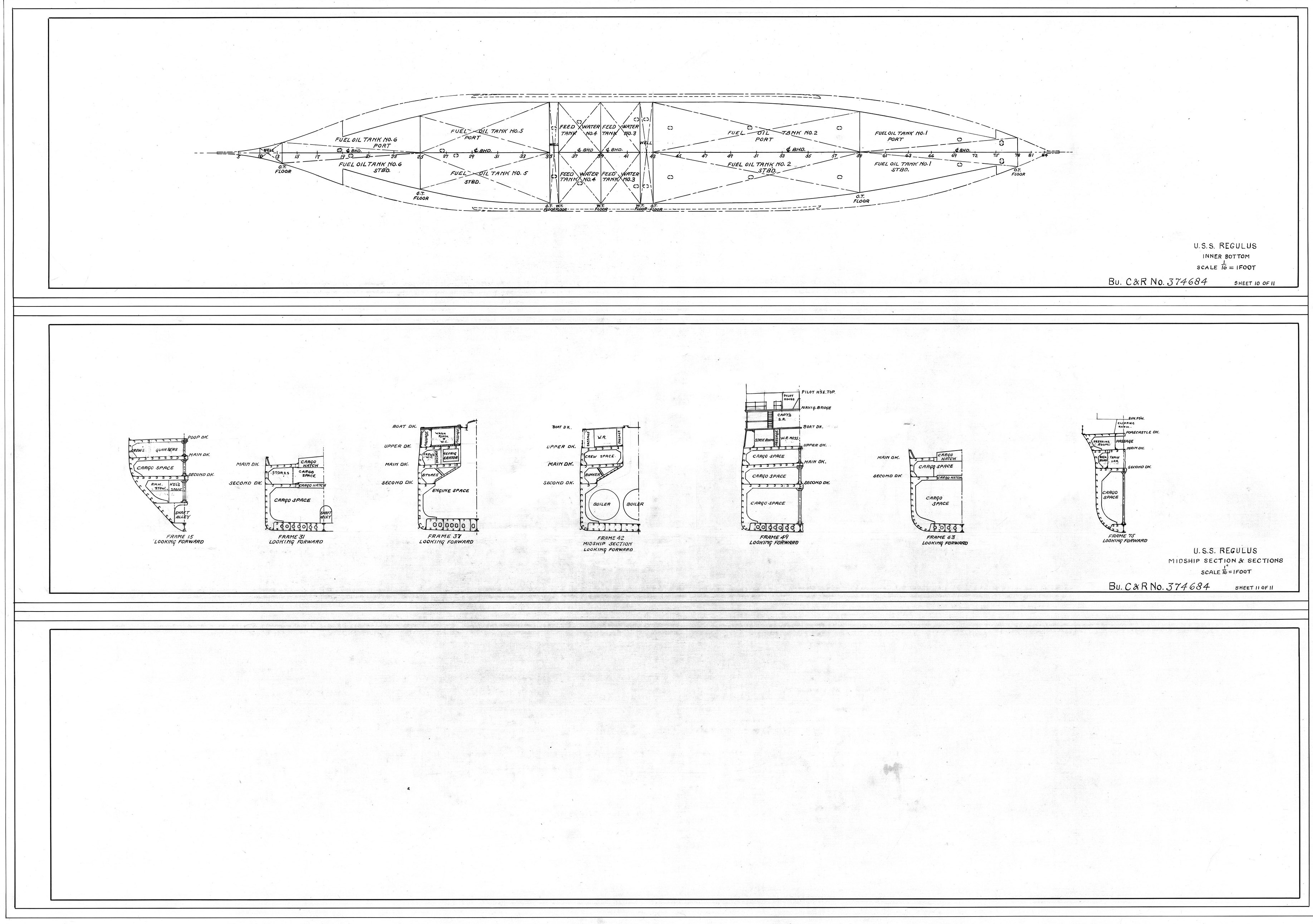

USS Regulus AK-14 - Sheets 10 & 11
Inner Bottom, Midship Section and Sections.
|
|
|
